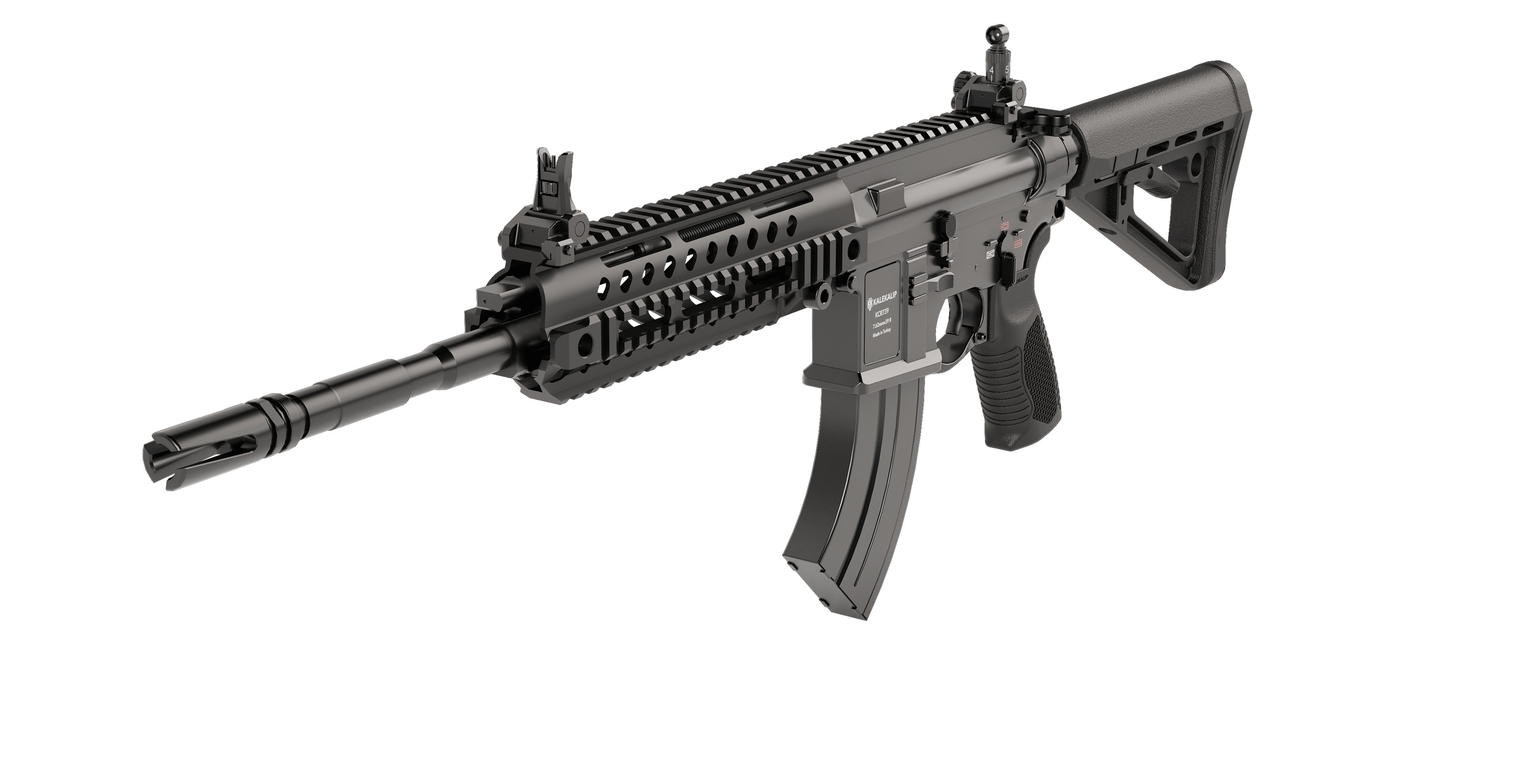

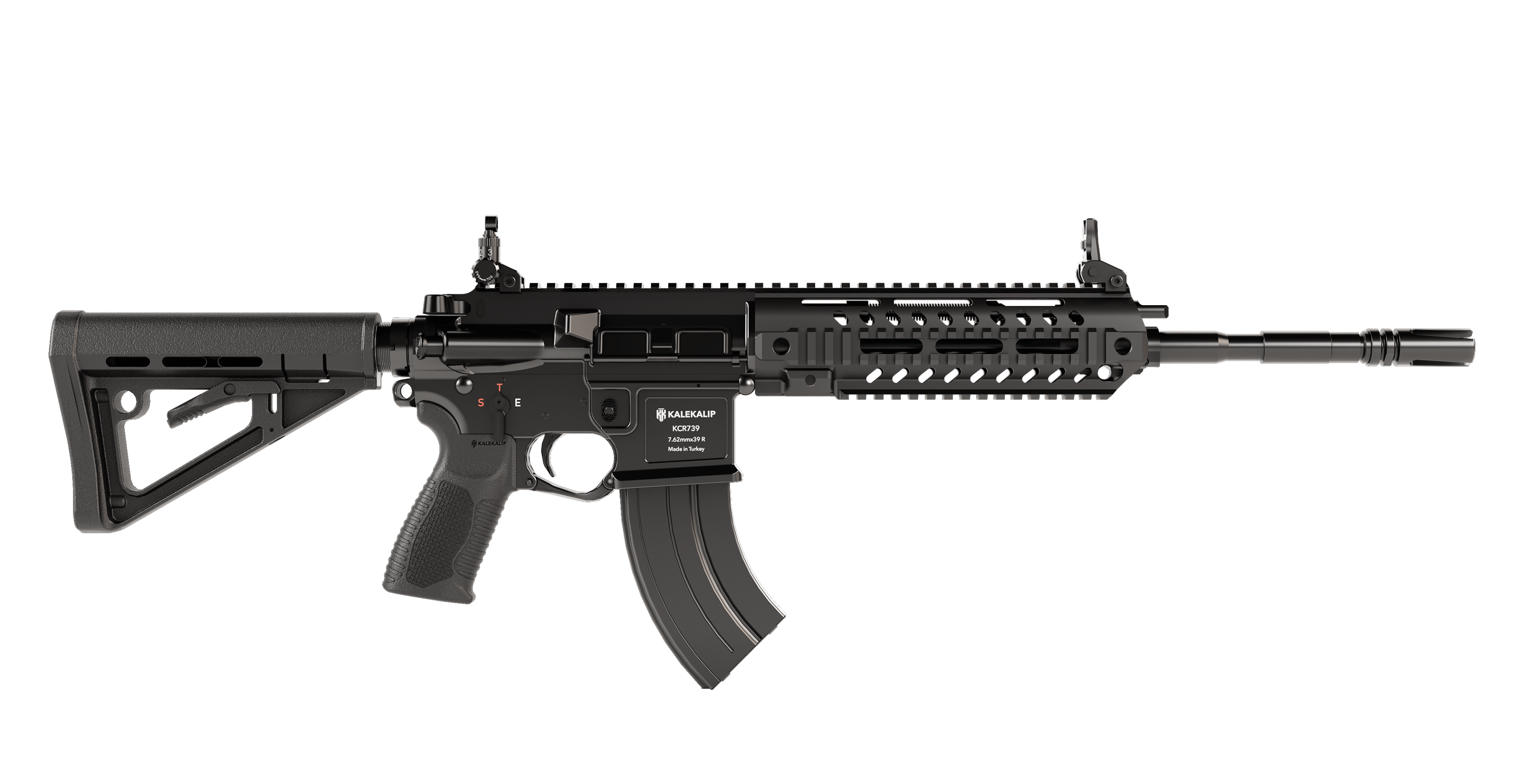

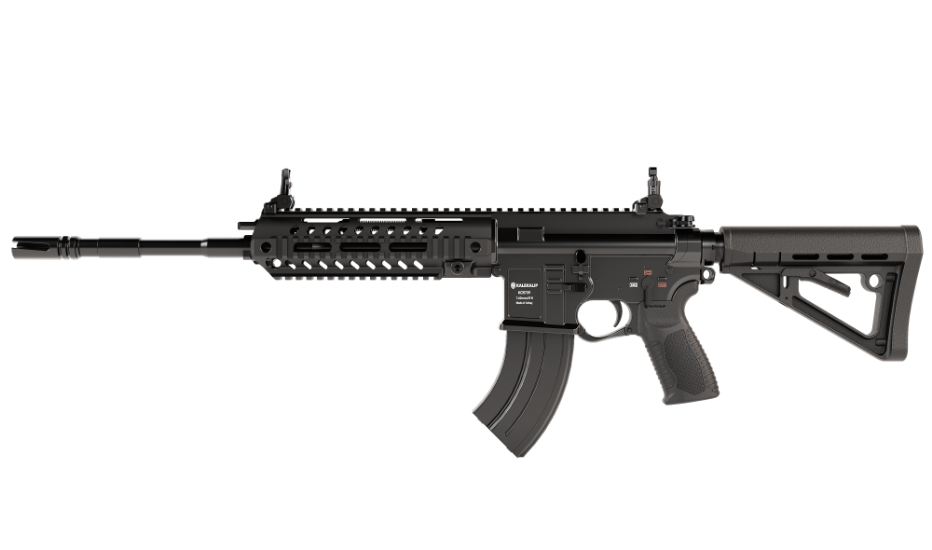

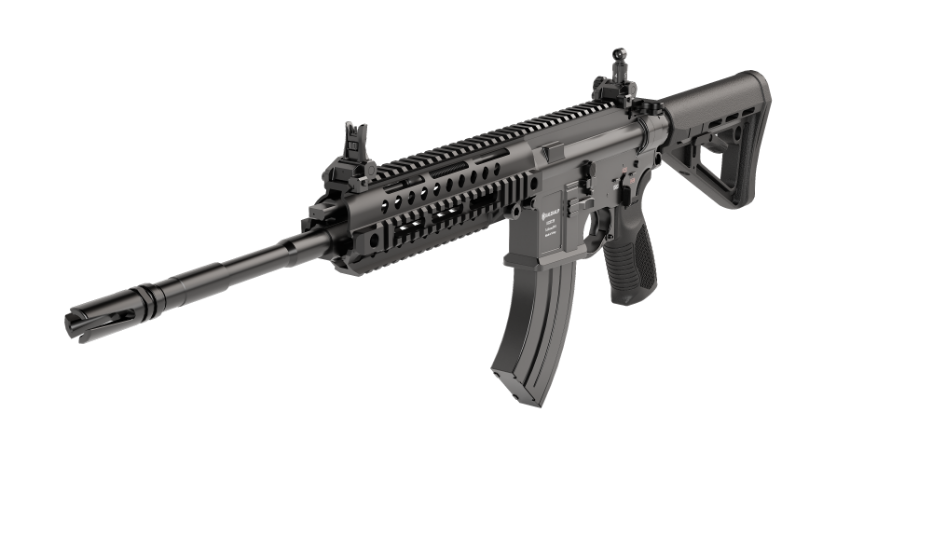

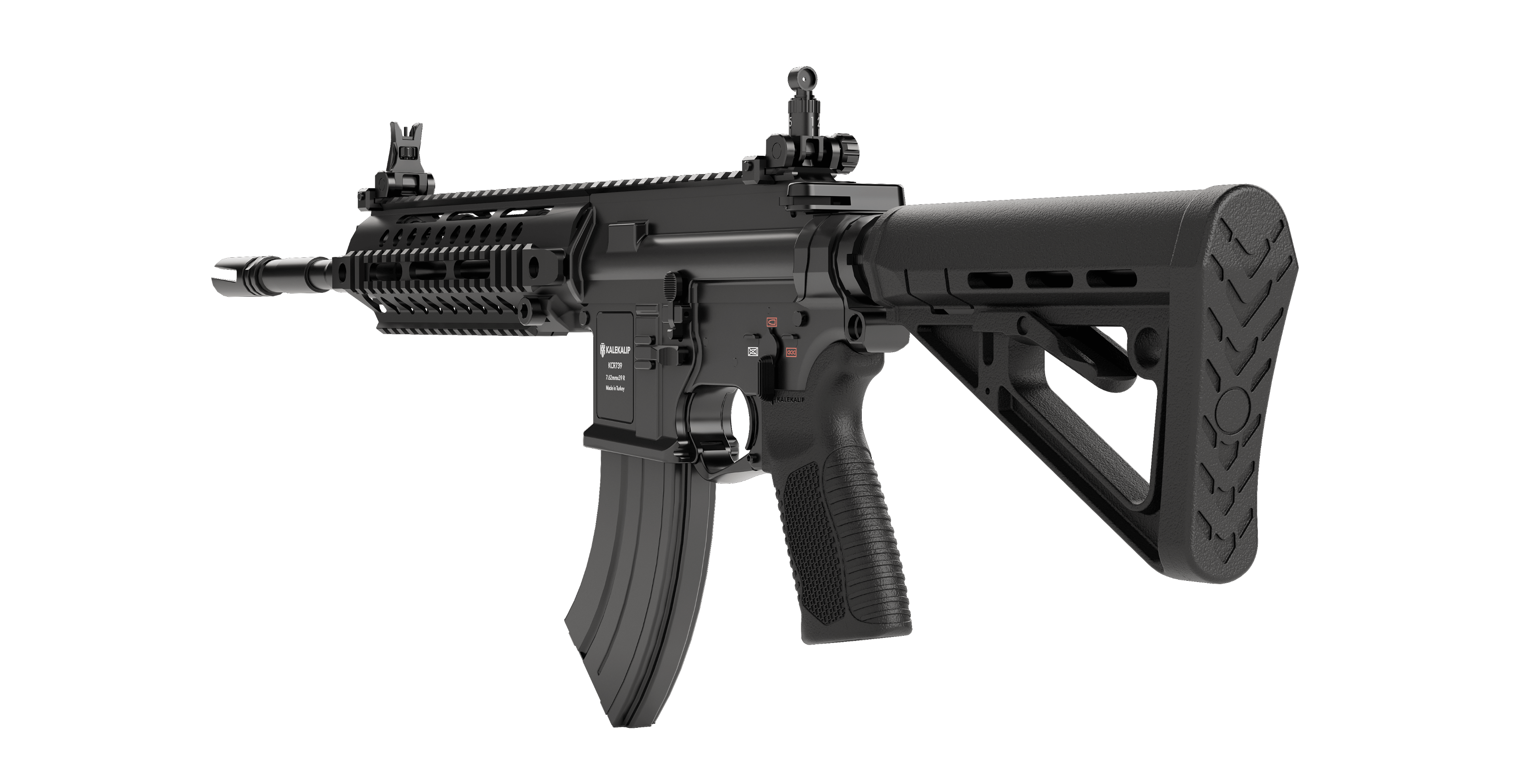

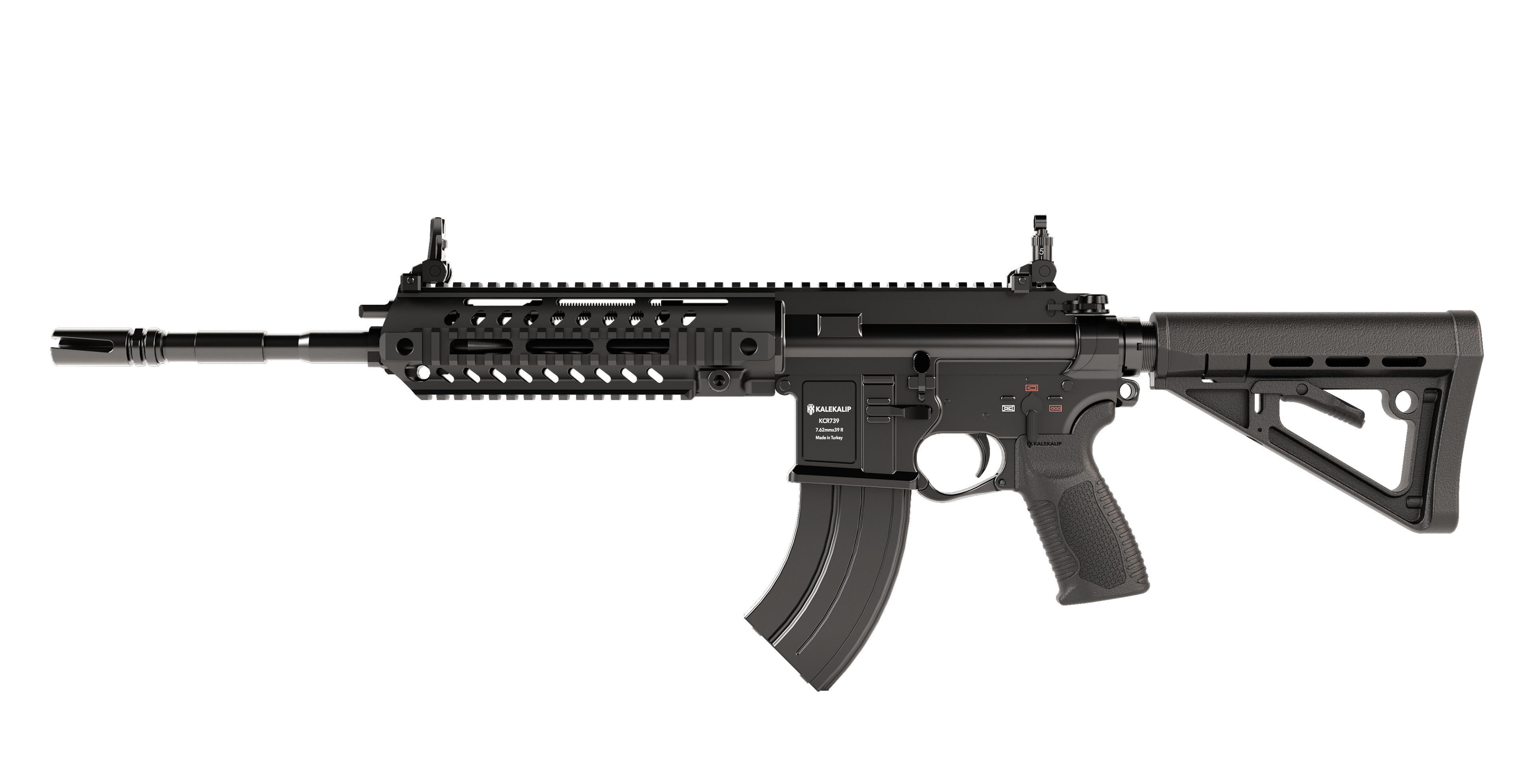

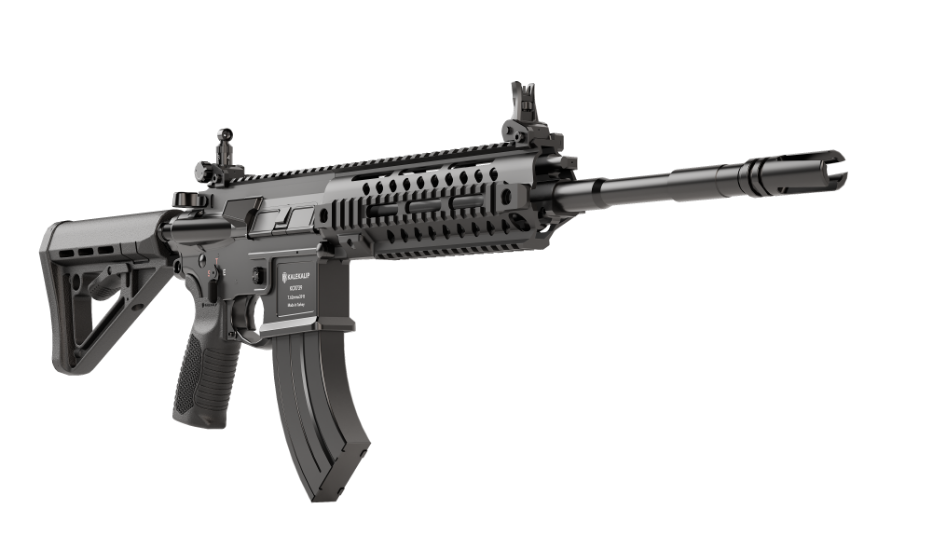

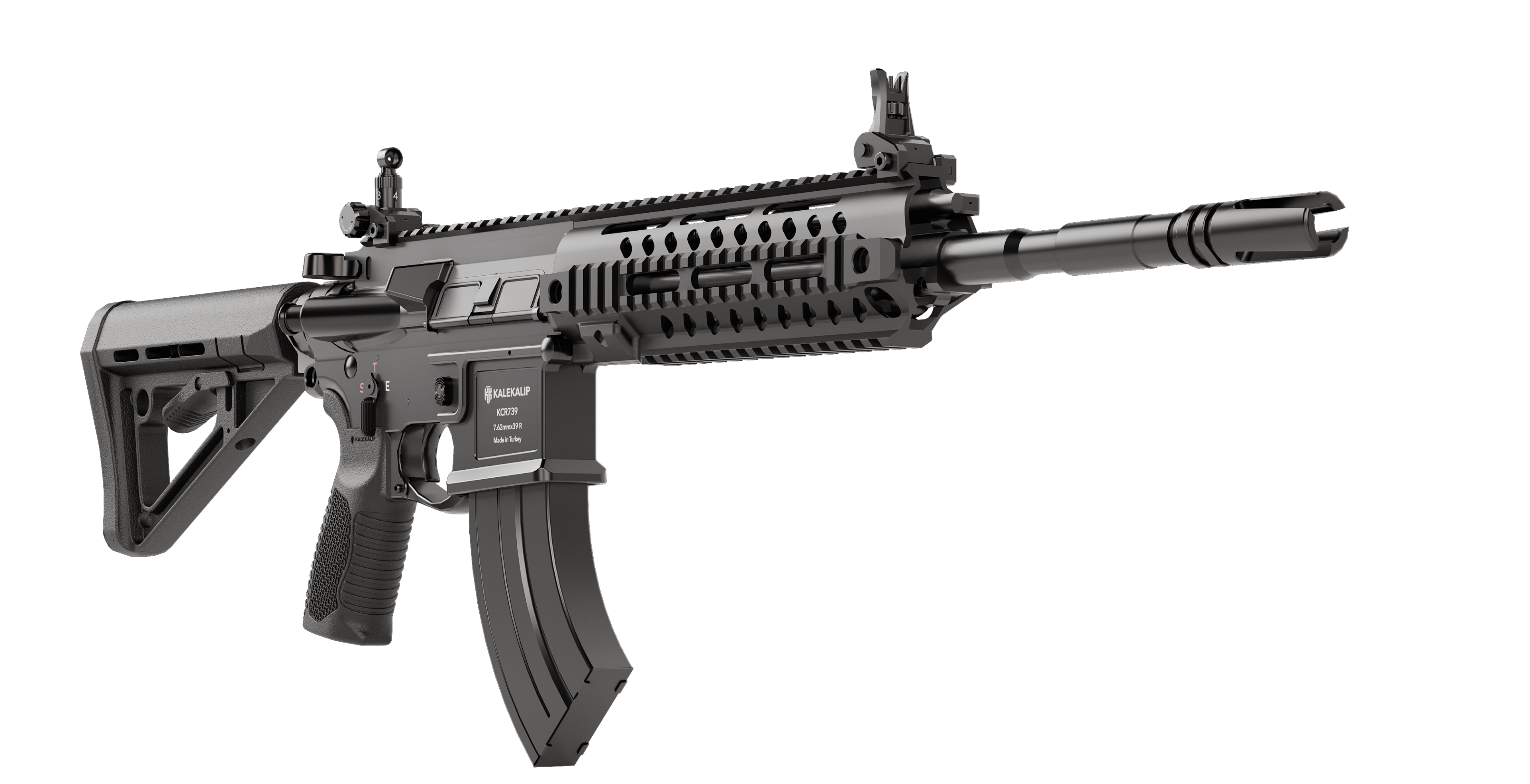

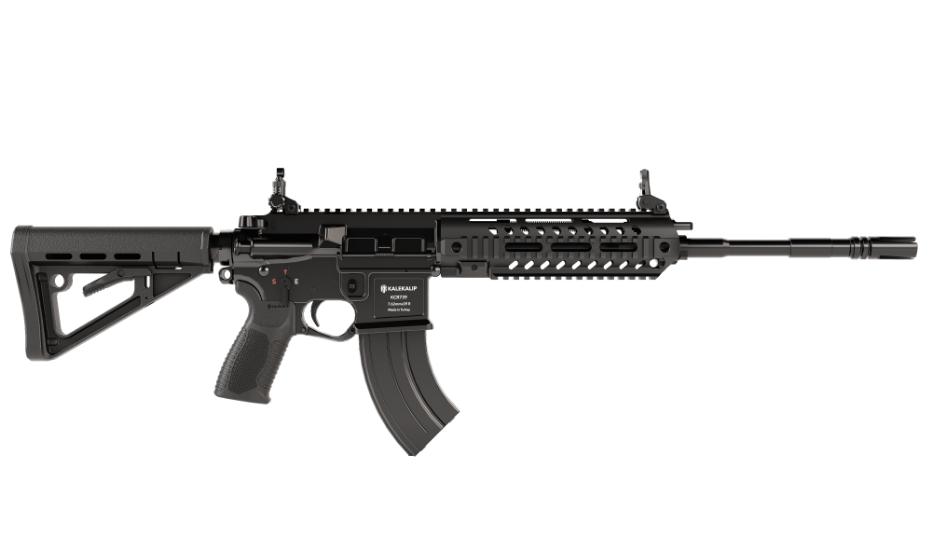

KCR739

14,5” Carbine

KCR739
14,5” Carbine
Aluminum Upper&Lower Receiver
MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

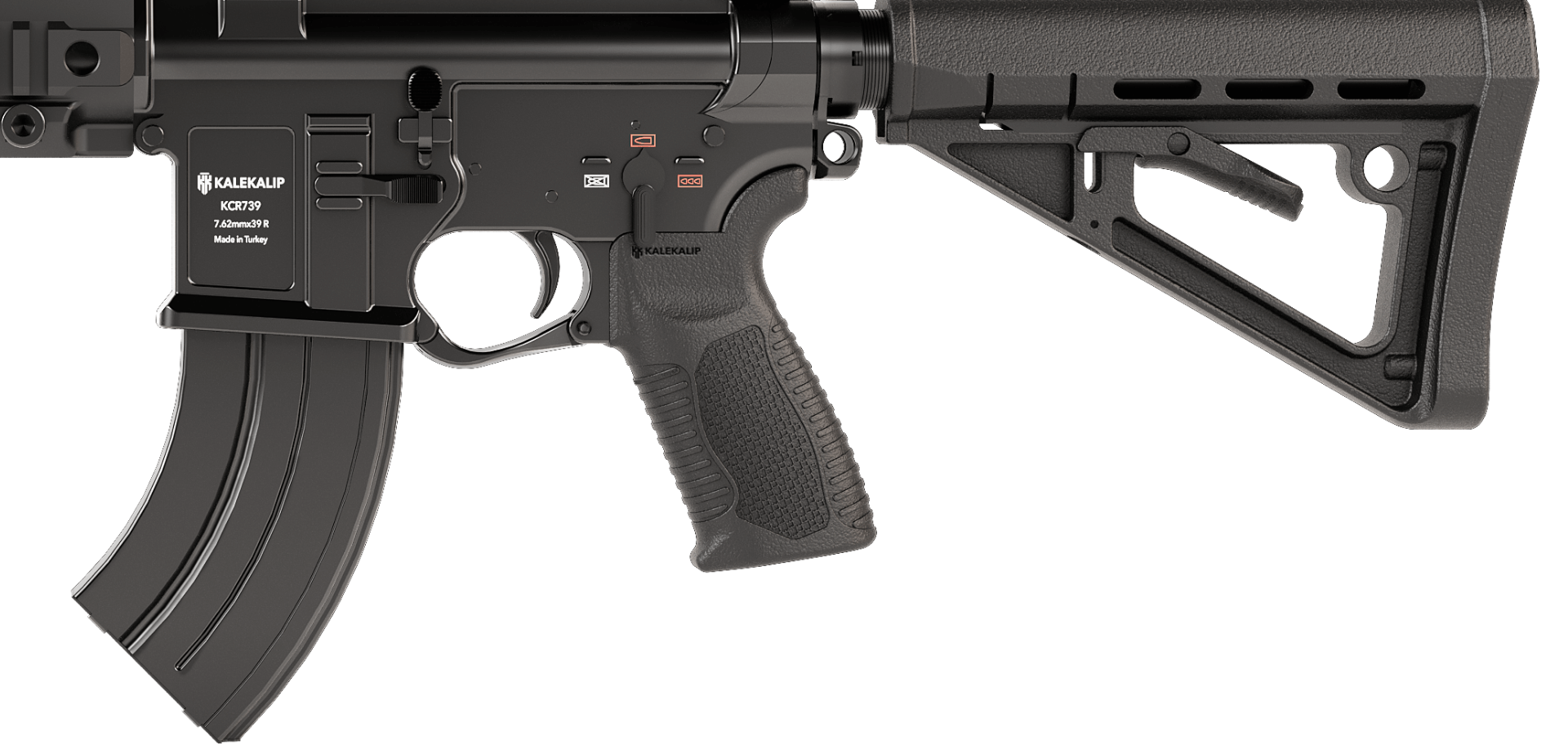

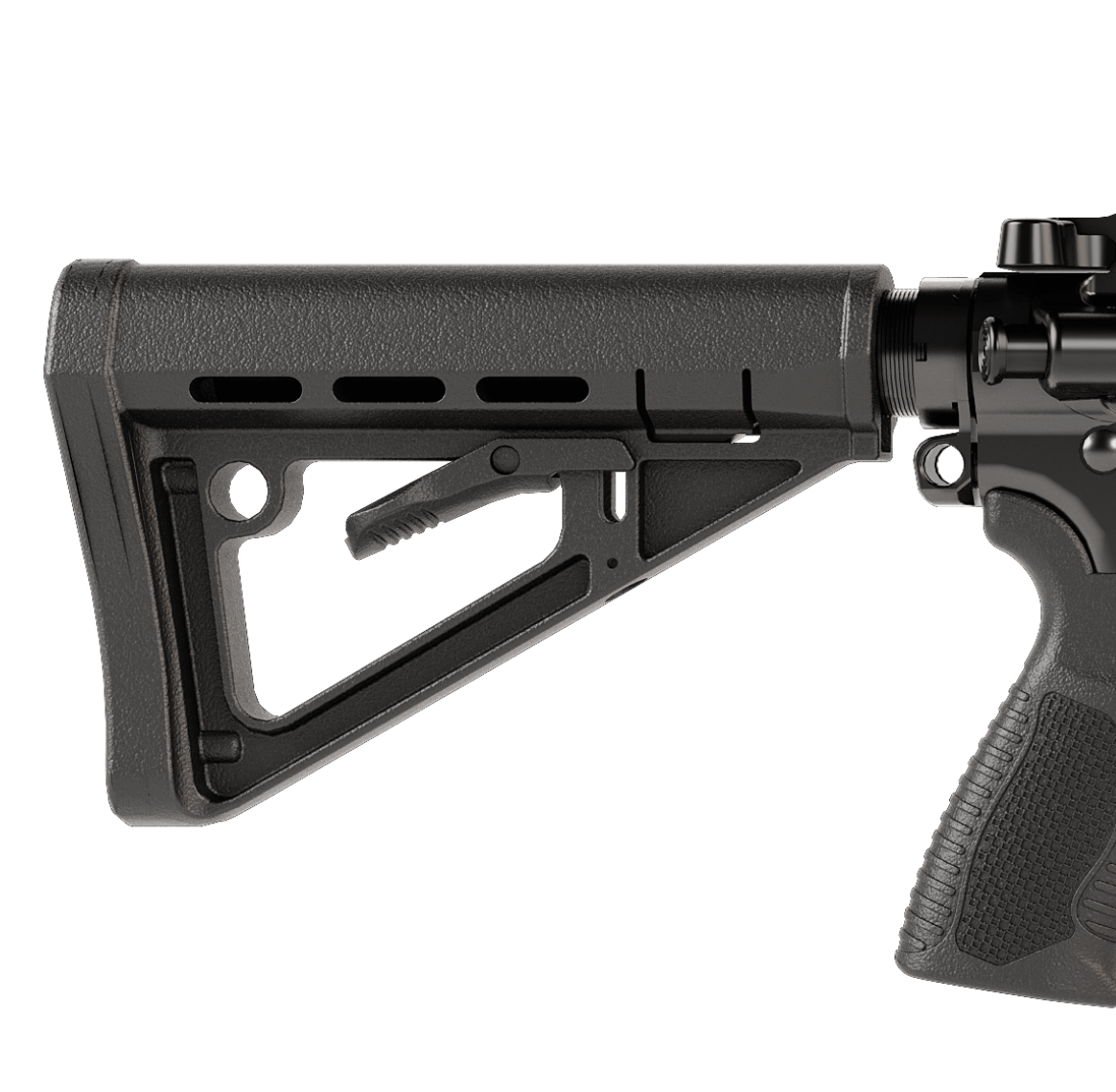

6 Position Telescopic Adjustable Stock

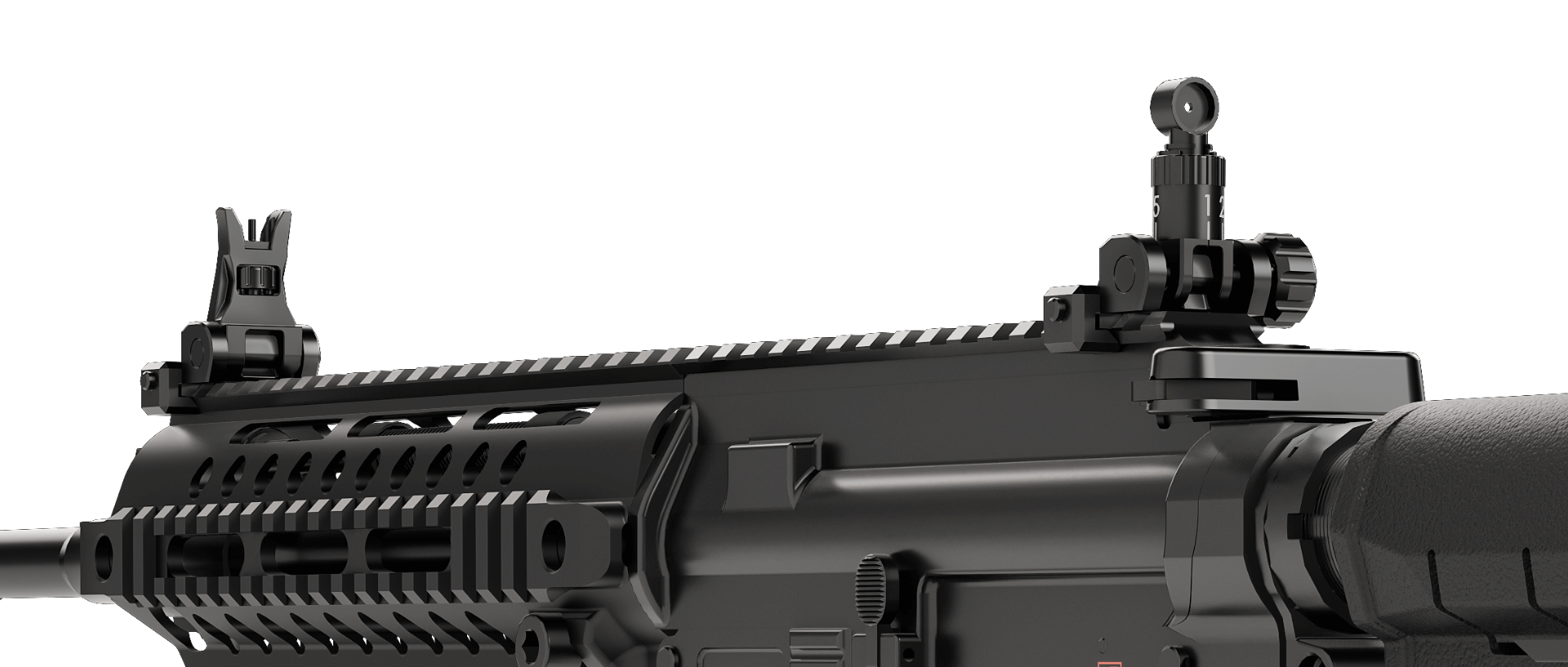

Modular Flip - up Iron Sights

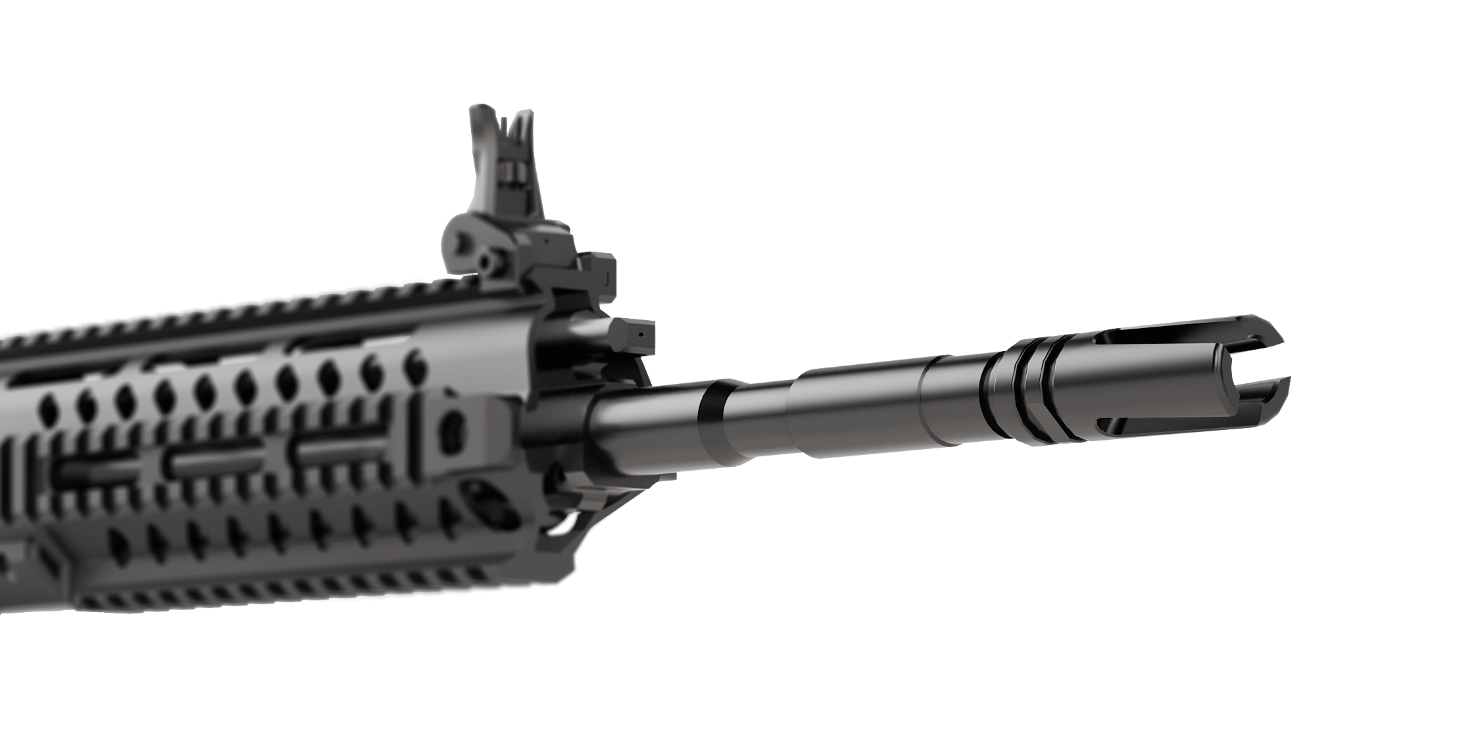

3 Prong Flash Hider
Ambidextrous Weapon Controls
Suitable For Right & Left Hand Shooters with Ambidextrous Weapon Controls
Specs
Calibre
7,62mm x 39 Russian
Firing Mode
Safe / Semi / Full Automatic
Maximum Length (Stock Extended)
890 mm
Minimum Length (Stock Collapsed)
810 mm
Overall Height (w/o Mechanical Sights)
185 mm
Weight (w/o Magazine)
3.350 g
Barrel Length
14,5” - 368 mm
Barrel Twist Rate
1:9” - 1:228 mm 6 grooves right hand twist
Flash Hider
3 Prong
Sight Radius
360 mm

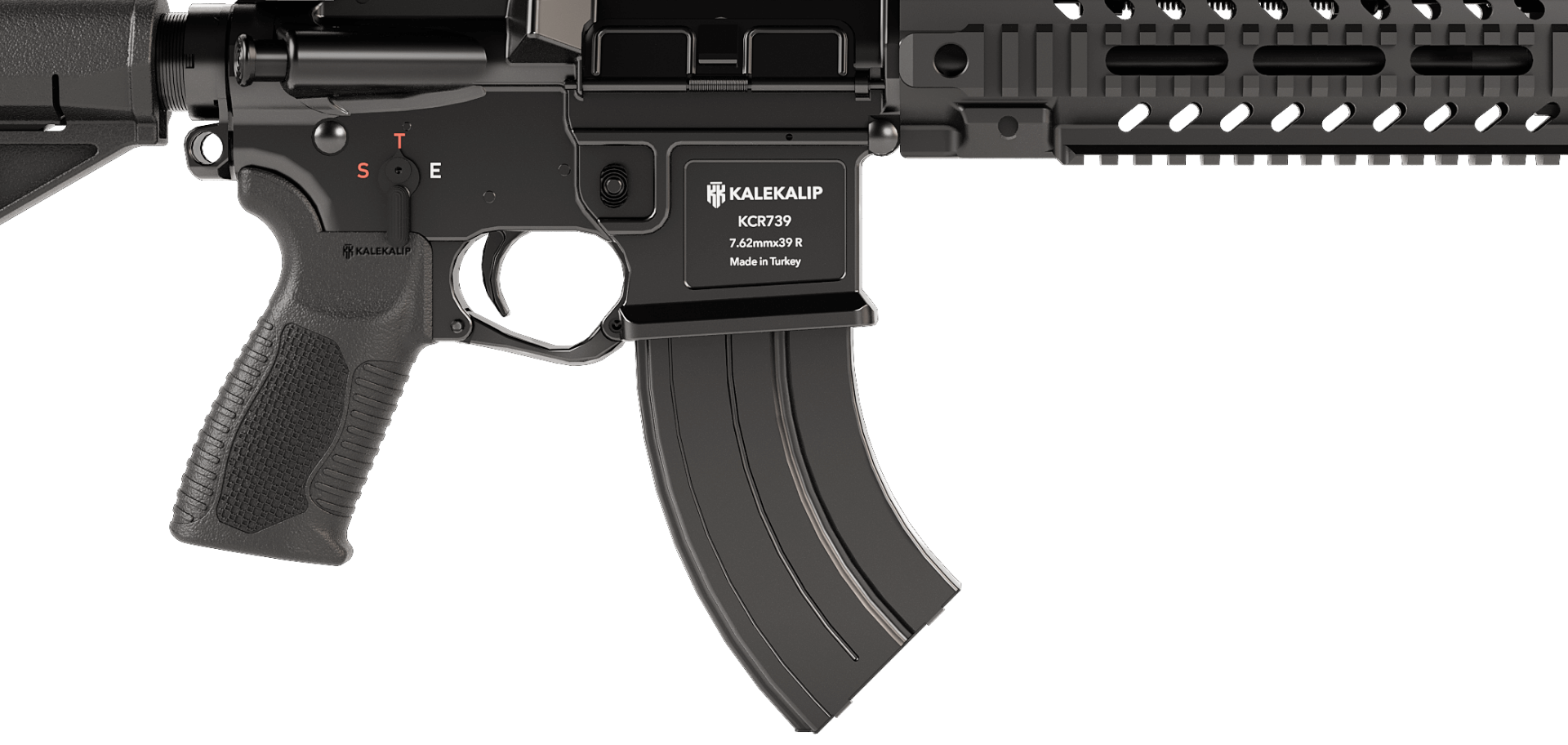

Magazine Type
Box type steel
Magazine Capacity
28 Rds, 32 Rds.
Muzzle Thread
½-28 UNEF - A2
Trigger Pull Weight
25 - 40 N
Rate of Fire
750 - 900 rpm
Velocity
685 m/s
Effective Range
400 m
0%
Features

KCR739 family is a modern AR Platform which provides capability to fire Russian AK Platform ammunition 7,62mm x 39

Advanced short stroke gas piston system

Suitable for right & left hand shooters with ambidextrous weapon controls

Free floating barrel & handguard

STANAG 4694/ M1913 Picatinny rails on the 4 sides of the handguard / MLOK

Upper Receiver with STANAG 4694/ M1913 Picatinny rails.

Modular flip-up iron sights

6 position telescopic adjustable stock

Different color options according to demand

MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

MIL Spec 11595 Cold hammer forged barrel, hard chrome plated ID, manganese phosphate coated OD and polished chamber
